Precise Non - Woven Fabric Combustion Tester / Flammability Test Chamber

    Buy cheap Precise Non - Woven Fabric Combustion Tester / Flammability Test Chamber from wholesalers

    Buy cheap Precise Non - Woven Fabric Combustion Tester / Flammability Test Chamber from wholesalers
    • Buy cheap Precise Non - Woven Fabric Combustion Tester / Flammability Test Chamber from wholesalers

    Precise Non - Woven Fabric Combustion Tester / Flammability Test Chamber

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-FT-9006
    Certification : ISO CE
    Price : 8000USD/PC
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10pcs/month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    Precise Non - Woven Fabric Combustion Tester / Flammability Test Chamber

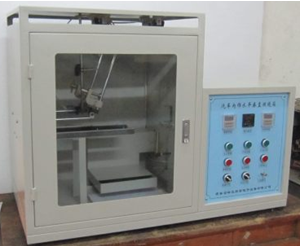

    HH-FT-9006 Non-woven fabric combustion test machine


    economize on electricity precise Non-woven fabric combustion tester


    A. Non-woven fabric combustion test machine Product overview:


    non-woven fabric combustion testing machine according to the horizontal vertical combustion standard PV3357 and felt combustion evaluation standard TL52323 production design of professional combustion experimental equipment, the whole machine adopts automatic control mode.

    The combustion performance of the material when placed horizontally and vertically can be comprehensively evaluated.


    B. Non-woven fabric combustion test machine Specifications:


    1. Sample size :PV3357 (230 200)mm GB8410 (356 100)mm
    2. The horizontal combustor is the cross point on the diagonal, and the common horizontal combustor is the middle point of the width edge
    3. Flame height :PV3357 flame height is 100mm. When horizontal, the distance between the sample and the nozzle is 90mm. When vertical, the distance between the lower edge of the sample and the nozzle is 30mm.The flame height of GB8410 is 38mm, the distance between the sample and the lamp mouth is 19mm, and the combustion width is 50mm
    4. Wind speed: in normal test, the wind speed is 0.20.1 m/s. In PV3357, 15m/s wind blowing is required on the surface of the sample.GB8410 medium wind speed
    5. The burner is horizontally flexible and has a 45 degree rotating Angle in the direction of the vertical specimen
    6. Machine material: cold - rolled steel electrostatic spraying
    7. Box size of horizontal vertical combustor :1000mm*520mm*750mm length, width and height

    c. Non-woven fabric combustion test machine Main configuration:


    1 experimental host (including all functional accessories)

    2: digital display electrical control box (including automatic ignition system)

    3: horizontal and vertical combustion fixture

    4: combustion fan


    Quality Precise Non - Woven Fabric Combustion Tester / Flammability Test Chamber for sale
