    Automotive Cable Manufacturing Machine , Car Wire Making Machine 380 Voltage

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : 80+35
    Certification : CE
    Price :
    Payment Terms : L/C, T/T
    Supply Ability : 10 units per month
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    Automotive Cable Manufacturing Machine , Car Wire Making Machine 380 Voltage


    Automotive Cable Manufacturing Machine , Car Wire Making Machine 380 Voltage


    Automotive cable : PVC insulated single or multiple copper conductors, sheathed with PVC layers.


    1.Construction : Solid Bare Copper Conductor or copper wire stranded , PVC Insulated ( yellow + green , black , white etc )


    A. bare copper conductor stranded :


    Suitable for above seven strand of the silver jacketed wire, tinned wire, enameled wire, bare copper wire, copper-clad steel, copper cladding aluminum .

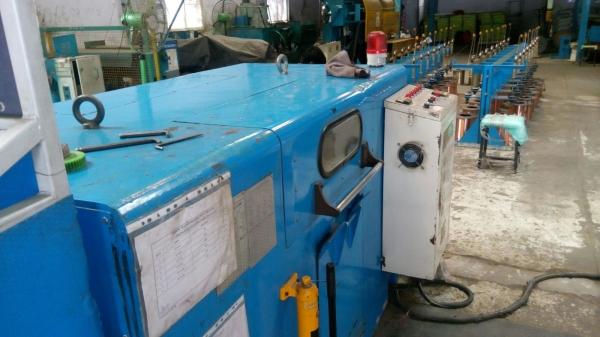

    A.650mm copper wire bunching machine -- Copper wire twist


    Application


    Twist 7 strands or beyond 7 in bare copper wire , sliver-plated wire , tin-plated wire , enameled wire copper clad steel wire , copper clad aluminum wire etc and twist earphone wire , electric wire , computer wire ,telephone wire etc


    B. 80+35 cable extrusion line


    PVC insulated --- 80 +35 cable extrusion machine


    Application : Suit for PVC /PE plastic extrusion , maily used in fire alam cable , electrical wire , house wire , data cable , network cable etc insulation


    1.Magnetic Power Tension Pay Off stand

    1. double head tension pay off stand
    2. Dancer / straigter
    3. 80mm Main extruder
    4. Automated loader & dryer
    5. Auto central Crosshead
    6. Single /Double layer Moving trough
    7. Main cooling trough
    8. Water wiper
    9. Digital Diameter controller
    10. Mark printer( selectable )
    11. Accumulator
    12. Capstan
    13.15KV Spark tester
    14. Meter counter
    15. Dual shaft type Take up
    16. PLC Master control cabinet

    17.35 strip extruder machine


    modelHOOHA -80DescriptionQuantity
    Pay offMagnetic power pay off standPay off stand2
    Pay bobbinPN630-1000Dancer1
    Screw diameterφ80Main extruder1
    Screw L:D26:1loader & dryer1
    capacity (kg/hr)270Crosshead1
    Wire diameterφ3-20Moving trough1
    Cooling deviceU type single or double layerMain cooling trough1
    Length for accumulating200Water wiper1
    Running speedMAX400Diameter controller1
    Taking upDouble axis for pack/bobbinMark printer1
    Taking up bobbinPN630-1000Accumulator1
    Electricity control+PLCCapstan1
    Inverter +PLC(for elected)Spark tester1
    Meter counter1
    Take up2
    Control box1

    HOOHA-extrusion line
    NOModelScrewMain Extruder OutputMain extruder Motor PowerCo-Extruder OutputCo -extruder
    Motor Power
    DiaL/DRotation
    (mm)RatioSpeed
    (r/min)(kg/h)(kw)(kg/h)(kw)
    130302540~10010~127.500
    250502640~10060~701500
    350+502640~10060~701510~123.7
    465652640~10080~1002200
    570+35702640~100110~1303010~123.7
    670+40702640~100110~1303030~4011
    780802640~100180~2003700
    880+40802640~100180~2003730~407.5
    980+50802640~100180~2003760~7011.25
    1090902630~90240~2605500
    1190+50902630~90240~2605530~407.5
    121001002630~903905500
    131201202630~906409000
    141501502630~9086011000
    NOProduct sizeCrossheadHeating Zones of cylinder
    Line Speed
    (mm)(m/min)(kw)
    10.15~0.800.2~1.010~600FixedSingle4/6(U7)4 zone 2.4kw
    20.5~4.00.8~5.010~600FixedSingle4/6(U7)4 z * 2.4kw
    30.5~4.00.8~5.010~600FixedSingle+ stripe4/6(U7)4 z * 2.4kw
    41.0~102.0~1210~600Fixed /manualSingleU7~U144 z * 3.0kw
    51.6~122.0~1510~700Fixed /manualSingle+ stripeU7~U145 z * 4.0kw
    61.6~122.0~1510~700Fixed /manualSingle+ stripe/skinU7~U145 z * 4.0kw
    72.0~203.0~2510~700Fixed /manualSingleManual centering5 z * 3.6kw
    82.0~203.0~2510~700Fixed /manualSingle+ stripe/skinManual centering5 z * 3.6kw
    92.0~203.0~2510~700Fixed /manualSingle+ stripe/skinManual centering5 z * 3.6kw
    105.0~359~3010~700Fixed /manualSingleManual centering5 z * 4.5kw
    115.0~3510~3310~700Fixed /manualSingle+skinManual centering5 z * 4.5kw
    124.0~305.0~5010~220manualSingleManual centering5 z * 4.5kw
    134.0~3010~8010~150manualSingleManual centering5 z * 4.5kw
    144.0~3015~12010~100manualSingleManual centering5 z * 4.5kw

    HOOHA-extrusion line
    NOModelPay offTension ControllerCooling troughCapstan / Caterpillar
    1st Cooling2nd Cooling
    BobbinPowerwheelPower
    Dia.Dia.
    (mm)(kw)(mm)(kw)(m)(m)
    130300~40043002.5kg.m1.54m singleCapstan
    250400~6307.54005.0kg.m1.54m*2 doubleCapstan
    350+400~6307.54005.0kg.m1.54m*2 doubleCapstan
    465500~6307.54005.0kg.m1.56m*2 doubleCapstan
    570+35500~6307.54005.0kg.m1.56m*2 doubleCapstan
    670+40500~6307.54005.0kg.m1.56m*2 doubleCapstan
    780630~8007.550010kg.m1.56m*2 doubleCapstan
    880+40630~8007.550010kg.m26m*2 doubleCapstan
    980+50630~8007.550010kg.m26m*2 doubleCapstan
    1090630~10007.580010kg.m26m*2 doubleCapstan/ Caterpillar
    1190+50630~10007.580010kg.m26m*2 doubleCapstan/ Caterpillar
    121001250~16007.580010kg.m412m singleCaterpillar
    131201600~22007.5125010kg.m412m singleCaterpillar
    141502200~31507.5160010kg.m412m singleCaterpillar
    NOCapstan / CaterpillarAccumulatorTake upLine Length
    PowerPowerBobbinPower
    (KW)(kg.f)Dia.(kw)
    (mm)(m)
    1Capstan2.2Φ375Φ1800.75300~4002.212~15m
    2Capstan4Φ375Φ180~3000.75~1.5400~630420~28m
    3Capstan4Φ375Φ180~3000.75~1.5400~630420~28m
    4Capstan4Φ500Φ3001.5630~800420~35m
    5Capstan4Φ500Φ300~4201.5630~800420~35m
    6Capstan4Φ500Φ300~4201.5630~800420~35m
    7Capstan4Φ630Φ4201.5630~1000425~38m
    8Capstan4Φ630Φ4201.5630~1000425~38m
    9Capstan4Φ630Φ4201.5630~1000425~38m
    10Capstan/ Caterpillar5.6Φ630Φ420~8001.5/3.7800~12505.528~40m
    11Capstan/ Caterpillar5.6Φ630Φ420~8001.5/3.7800~12505.528~40m
    12Caterpillar5.61250~22005.532~55m
    13Caterpillar5.61600~25005.532~55m
    14Caterpillar5.62200~31505.532~55m
